เอฟเฟคกีตาร์ NUX HD PITCH (NTU-2)
Precise Tuning / Signal Correction

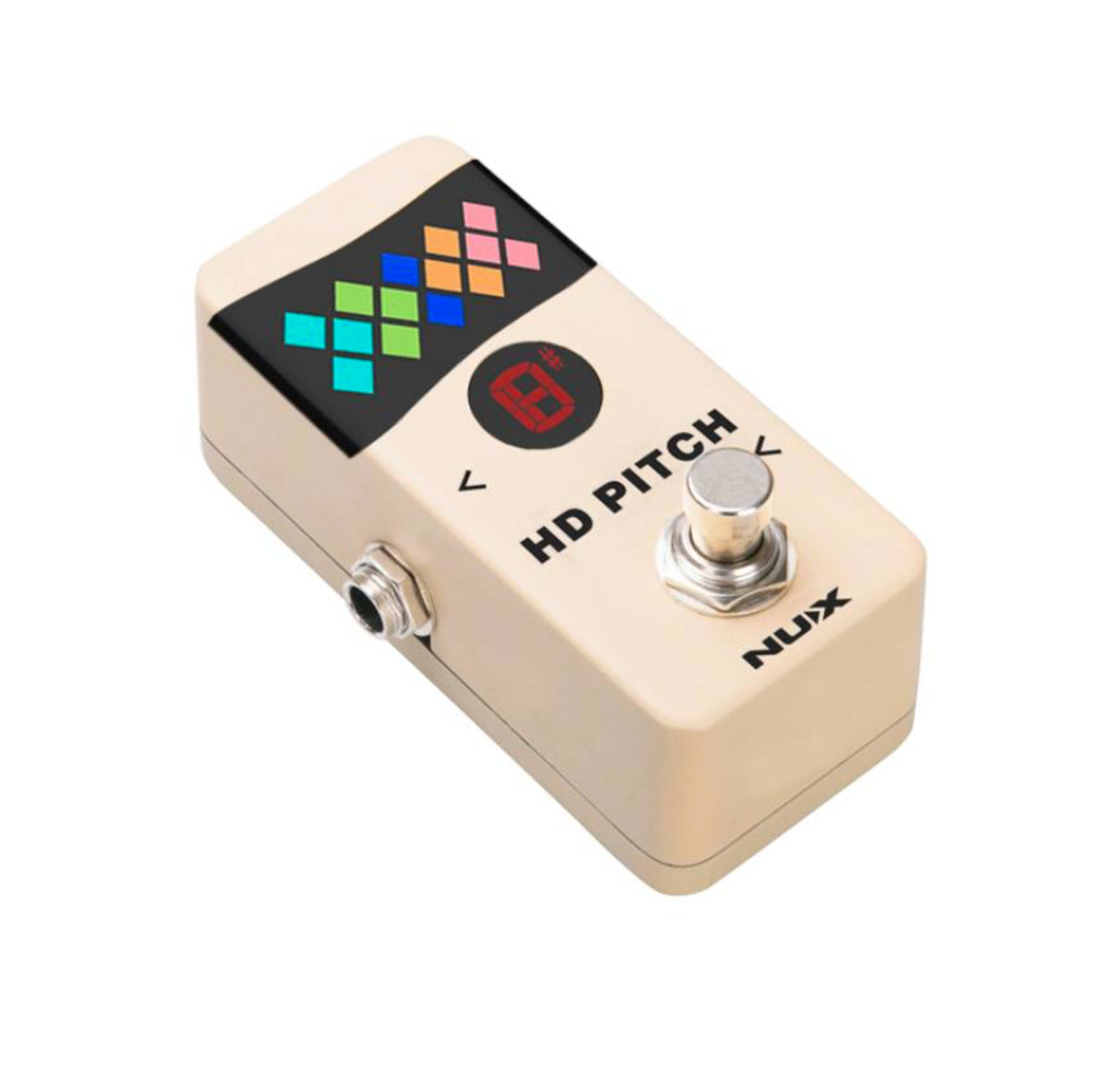

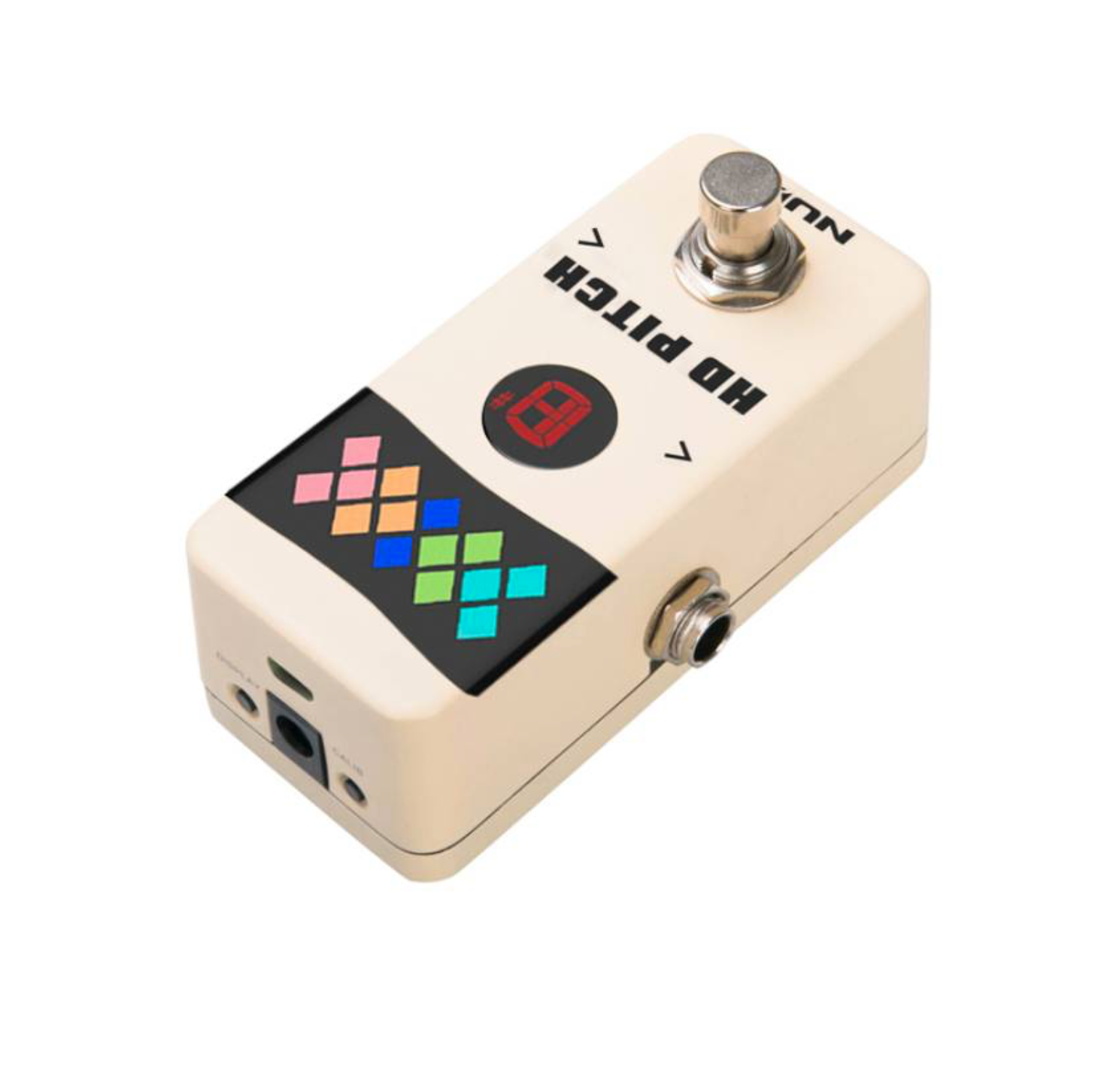

NUX HD PITCH Mini Pedal Tuner is a precise tuner with full colored LED screen and HD visuals. And it is perfect to be “first” in a signal chain.
When you engage the pedal, it’s an accurate tuner.
When you disengage the pedal, it’s a signal buffer (in Buffer Bypass mode).
Tuner Overview
This Mini-Pedal Tuner is a whole new breed, created and developed with our latest technology yielding an ultra-fast response time, and unmatched precision tuning. It has 2 bright LED screens that display: notes, tuning, calibration, and bypass mode.
Tuning Visual 1 Arrow Mode
Tune your instrument until the LED indicator at the center is lit. If the LED is on “left” the pitch is flat, LED is on “right” the pitch is sharp.
Tuning Visual 2 Strobe Mode
Tune your instrument until the LED indicator stops running. The LED indicators will be running from “right to left” if the pitch is SHARP, and “left to right” if the pitch is FLAT.
Why Relay Buffer?
There are 3 typical buffer circuit designs: OP-AMP, BJT, and FET. The FET buffer circuit could generate Even Harmonics. This is quite similar to tube amplifiers, which almost every musician loves.
And Relay Buffer has the same performance as FET buffer, we add the optional buffer bypass function as FET buffer works for your guitar signal.
Specifications
-
Tuning Range：A0 (27.5 Hz) to C8 (4186 Hz)
-
Tuning Accuracy：±0.1 cent
-
Reference Pitch：A4 = 436-445 Hz
-
Input Impedance：1M ohm
-
Output Impedance：1K ohm
-
Power Input：Standard 9V DC, center negative >100mA (power supply not included)
-
Weight：174g/ 6 oz
-
Dimensions：94（L）×51（W）×53（H）mm | 3.7（L）×2.0（W）×2.08（H）inches
